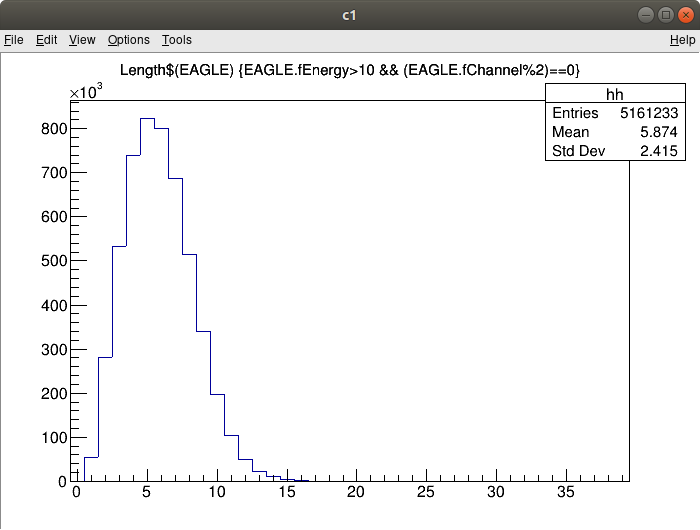

Data from current run - 35, with limited beam current and rates - see a recent post by Güray. BU level, so what we see in Greware (both online & nearline). Attached is the fold of Germaniums. It seems way too large to me. We are summing up the events and then, not surprisingly, having rubbish gamma-gamma matrices. The gate is 1500 ns, while Ge are not so far away from each other. Any fixed time differences should be corrected with LF configuration. Having all Ge, ACS, and Neda TS-aligned at LF level, BU will do a good job with a reasonable short gate. We need channel-by-channel TS differences. The data we took and we are taking now can be recovered in terms of this correction later on. Marcin can build the events correctly from LF level. Let's try to do so with as short gates as possible and see again the gamma-gamma matrix and neutron-gated g-g matrix.
