Subject:

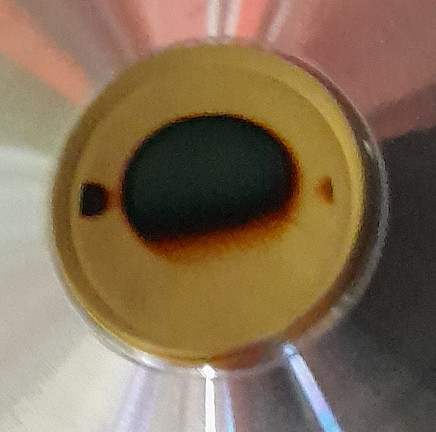

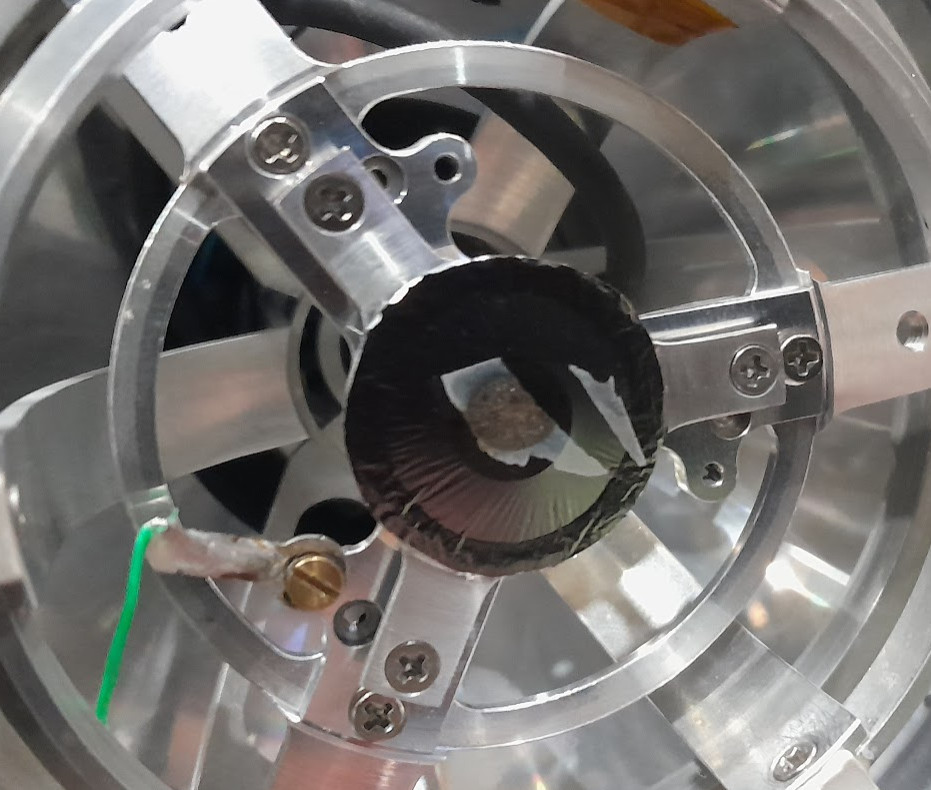

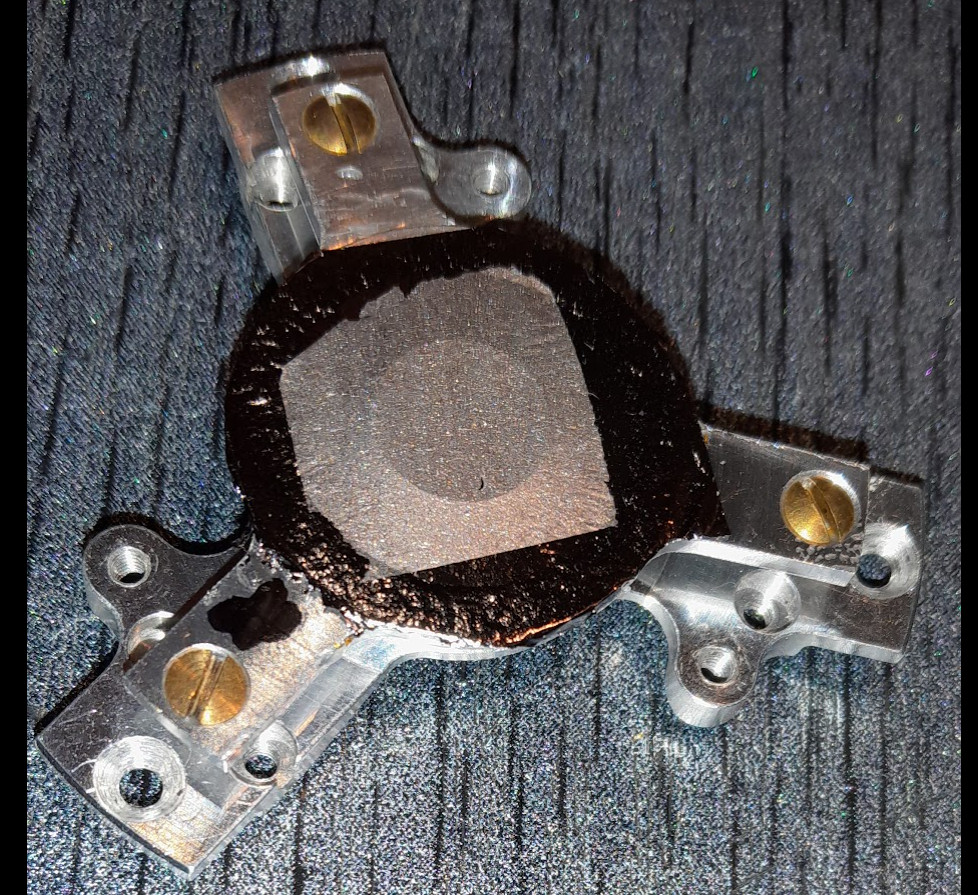

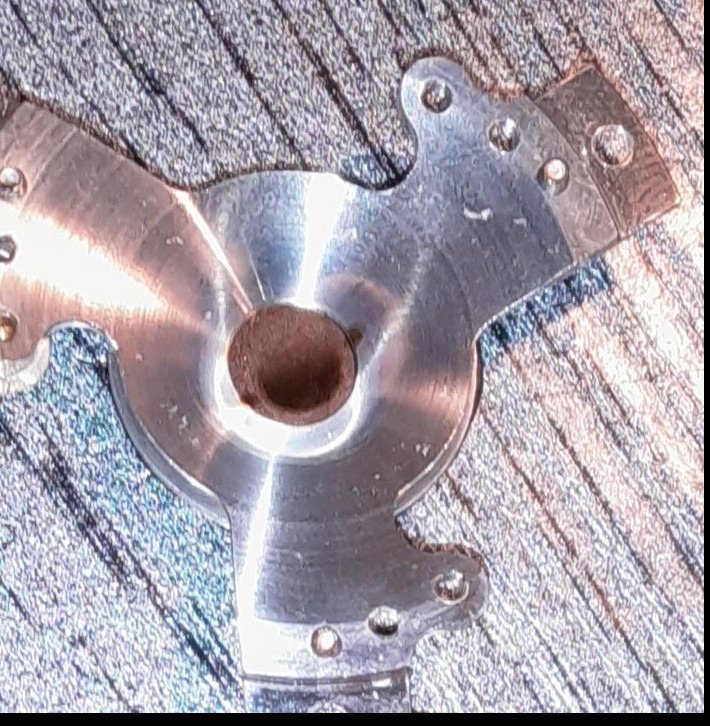

<p>See pictures in the attachment:</p> <p>1) stopper seen from the back (upstream view)</p> <p>2) stopper seen from the front (downstream view)</p> <p>Mind the two small off-center dots. It is clear that the beam hits the edge of the frame. This is possible because the 5 mm collimator has two small dots outside the 5 mm hole (the collimator can be seen in the beam tube).</p> <p>3) old target, upstream view</p> <p>4) new target, upstream view, after the stopper drove into it</p> <p>5) new target, before it was mounted</p> <p>6) the stopper, after the collision with the target. One of the visible rings is probably due to this collision, other traces probably reflect its complicated history earlier.</p> <p> </p> <p> </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 436x432
Attachment 2:
Original size: 710x726
Attachment 3:
Original size: 931x790
Attachment 4:
Original size: 978x895
Attachment 5:
Original size: 978x895
Attachment 6:
Original size: 887x835
